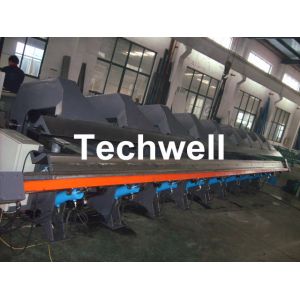

4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function

Summary

This CNC Hydraulic Folding Machine adopts CNC controller which can help to fix, clamp, fold and slit the sheet, it is a high-tech product which integrated with electromechanical and hydraulic.

The machine mainly consists of machine body, clamp unit, folding system, CNC control backstop, width shearing system, work piece supporting system, hydraulic system and PLC Control system, etc.

Main Specifications

• Max. folding thickness: 0.3-1.5mm Galvanized steel sheet or color steel sheet; 2.0mm Max. for Aluminium
• Max. folding length: 4000mm
• Max. folding angle: 125 degree
• Weight of machine: about 11Ton
• Width slitting function
• Max. shearing thickness: 0.3-1.5mm Galvanized steel sheet or color steel sheet; 2.0mm Max. for Aluminium
• Shearing speed: about 800mm/sec.
• Shearing Mode: Rotary slitter
• Control System: PC with 12” LCD
• Electric Condition: 380/3Phase/50Hz ( or depend on customer’s requirement )
• Outline dimension of main machine: 4595x1842x1375mm (LXWXH)

Main Components

• Machine Base
• Clamp Unit
• Folding Equipment
• CNC Control
• Width Shearing System
• Work Piece supporting device
• Hydraulic System
• PLC Control System

Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
