    Caterpillar Mounted Portable Gutter Machine For Plant Growing System

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-GM600
    Certification : CE, ISO
    Payment Terms : 40% T/T in advance, 60% T/T before shipment,
    Supply Ability : 20 sets
    Delivery Time : 60-70 working days
    • Product Details
    • Company Profile

    Caterpillar Mounted Portable Gutter Machine For Plant Growing System

    Portable Greenhouse Gutter Machine For Plant Growing System to do siteworking for planting Strawberry, tomatos, roses...


    Wuxi Techwell is the First in researching, developing, designing and producing Portable gutter machines in China for Hydroponics hanging gutters for planting fruits and vegetables in a soilless enviroment. And we also provide products and services to greenhouse investors with our self-manufactured portable greenhouse gutter machines. We provide both gutter products and hanging parts, standing parts. The cultivation of many fruits and vegetables in a soillesss enviroment has alleiated the futre problem of food shortages. And TECHWELL team are very happy to be working within this industry.


    Main Technical Specifications of Caterpillar Mounted Portable Gutter Machine


    1). Gutter Pofiles



    Profile Name

    Gutter Profile
    Material TypePainted Galvanized Steel
    Material Thickness0.6mm
    Material Width600mm
    Profile LengthCut to required length
    • This gutter profile widely used gutter model for the production of tomatoes, cucumbers and steet bell peppers.
    • And this profile is used in both standing support systems and hanging systems.

    2). The Characteristic Specification of Portable Gutter Machine



    • This mobile greenhouse gutter forming machine is movable caterpillar mounted type machine, which can do site-working at the desired length. And the machine base can rotate 360° and move forward and backword for special site-working requirement.

    • And the forming machine base structure is quick interchangeable Cassette tyoe structure for different profiles required. And if in future the user want to add new more profiles, just need to buy the cassette type forming part and cutting device.

    • Forming Station: 8 Station

    • Shaft Diameter: φ75mm

    • Main Power: 7.5KW

    • Hydraulic Power: 11KW

    • Caterpillar Chassis Working Type: Hydraulic drive move forward, backward and rotate 360°.

    • PLC: PANASONIC Brand

    • Inverter: YASKAWA Brand

    Layout Drawing of Portable Gutter Machine

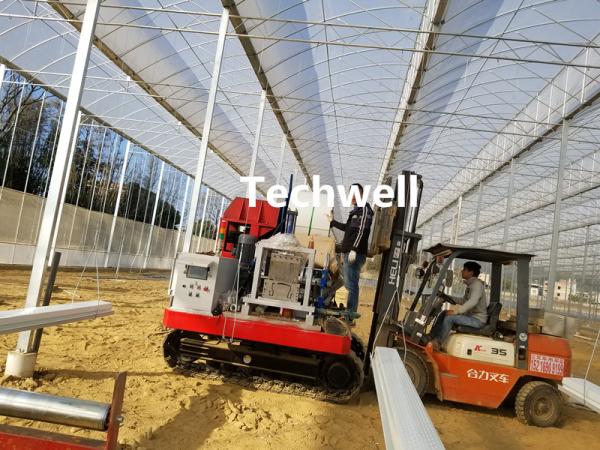

    Mobie Greenhouse Gutter Forming Machine Pictures
