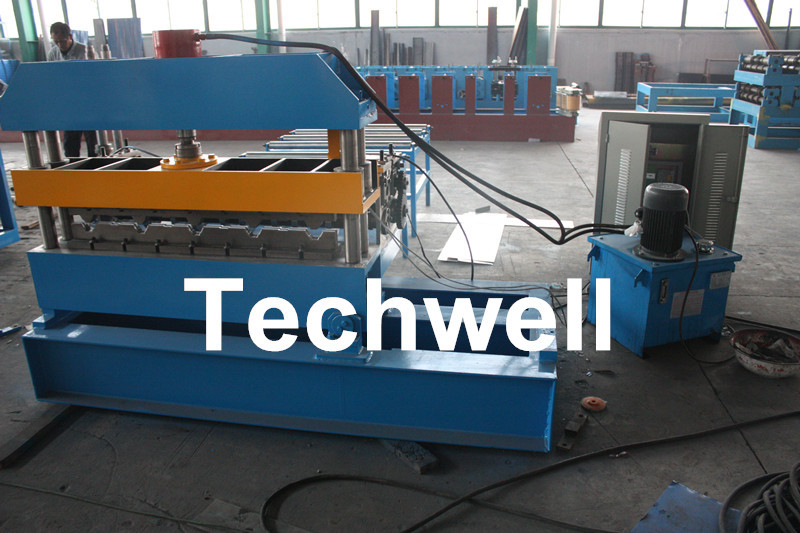

PLC Frequency Control Metal Roof Bending Machine To Curve Roof Panel With Adjustable Speed

Description of Roof Bending Machine

• This curving machine is a kind of technology that curves panel and profile materials by rotation rollers. Types of the bending machine have color tile curving machine, hydraulic curving machinery, arc curving machine, corrugated steel panel curving equipment, colored steel tile curving device, etc.
  The main components of this bending machine are motor and bending rolls.

• This curving machine is easy to operate, and enjoys high precision and long service life. The curved panels never have scratch or burrs.

• Please do lubrication for bearings and chains per shift. If bending rolls are not used for a long time, please apply antirust oil to them.

Main Technical Specifications of Roof Bend Machine

• Raw material thickness: 0.3-0.8mm
• Raw material width and length: according to customer's request
• Working Speed: 10000-12000mm/min ( adjustable)
• Total Motor Power: 2.2 Kw
• Roller material: High grade 45# forged steel, surface polished and coated with 0.05mm thickness hard chrome
• Shaft material: high grade 45# Steel with Diameter 75mm
• Cutting Blade: Cr12 mould steel with quenched treatment
• Control: PLC computer control ( frenquency convercy )
• Curving radius: 500mm

Working Process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→ Output

Roof Bending Machine Reference Profile Drawing

Applications

To curve roof wall panel, roof sheet, roof panel, to mak bull nose...

Output Table Reference Products
